Fixed Offest Control Arm Kit Ford Ranger PXI-PXIII - TRC6560

Fits versions of the following makes & models: FORD RANGER Read More

SuperPro
Out of Stock
MPN: TRC6560
See delivery options available

RRP | £587.09

£528.38 £528.38 £528.38
Success
Item successfully added to the cart.

Stock Notifications

This site is protected by reCAPTCHA.

You have successfully subscribed to be notified once this product becomes available.
Check this part fits your vehicle

Will this part fit my car?

Tick This part is compatible with your current selected vehicle

Cross This part is not compatible with your current selected vehicle
We have other parts that fit. Click here to view

Your Current Vehicle

{{ vehicleDescription }}

Change Vehicle

Other Performance Bushes for a {{vehicleDescription}}



Fits the following

    • 2.0 EcoBlue 4x4
    • 2.2 TDCi
    • 2.2 TDCi 4x4

Product Overview

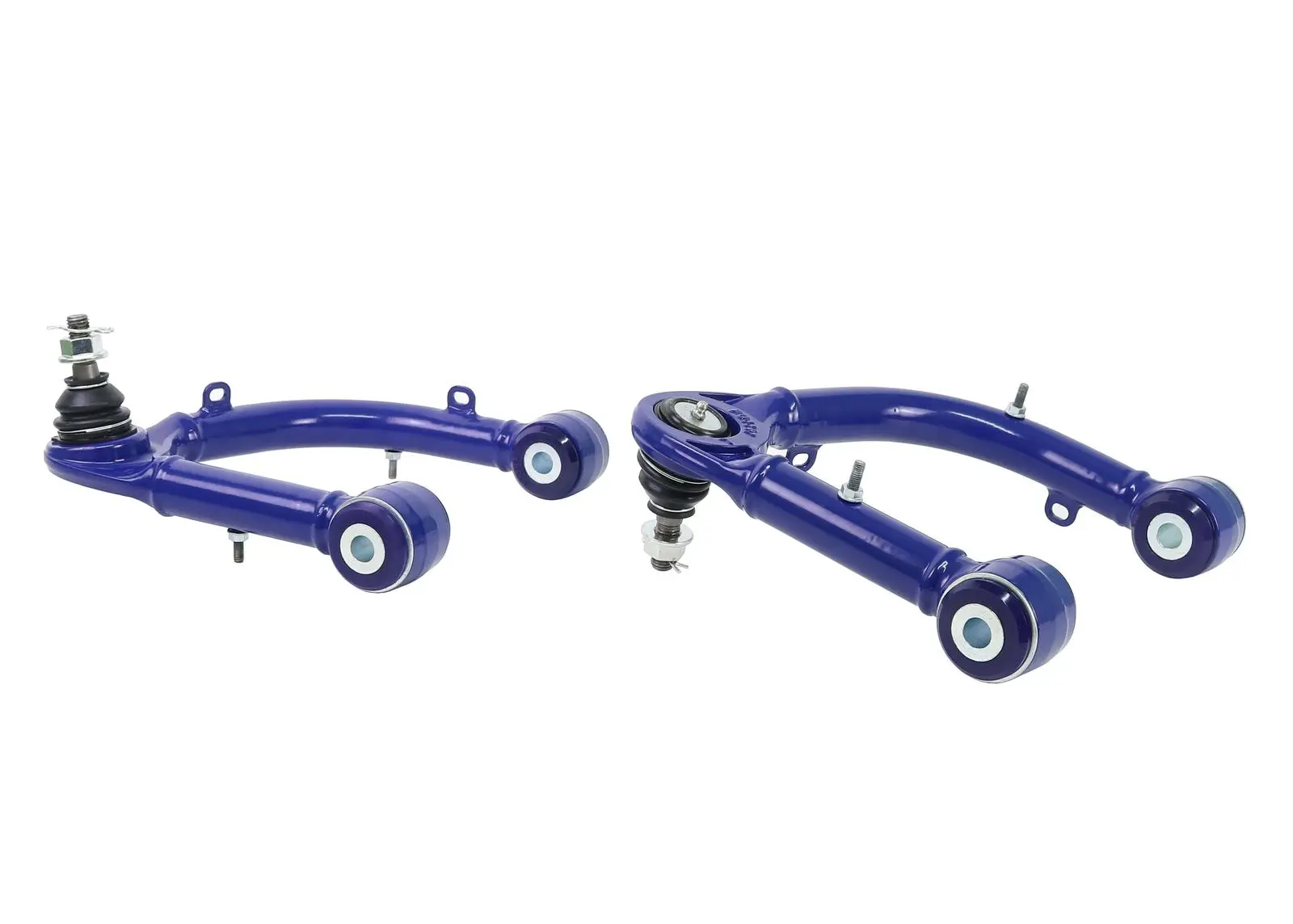

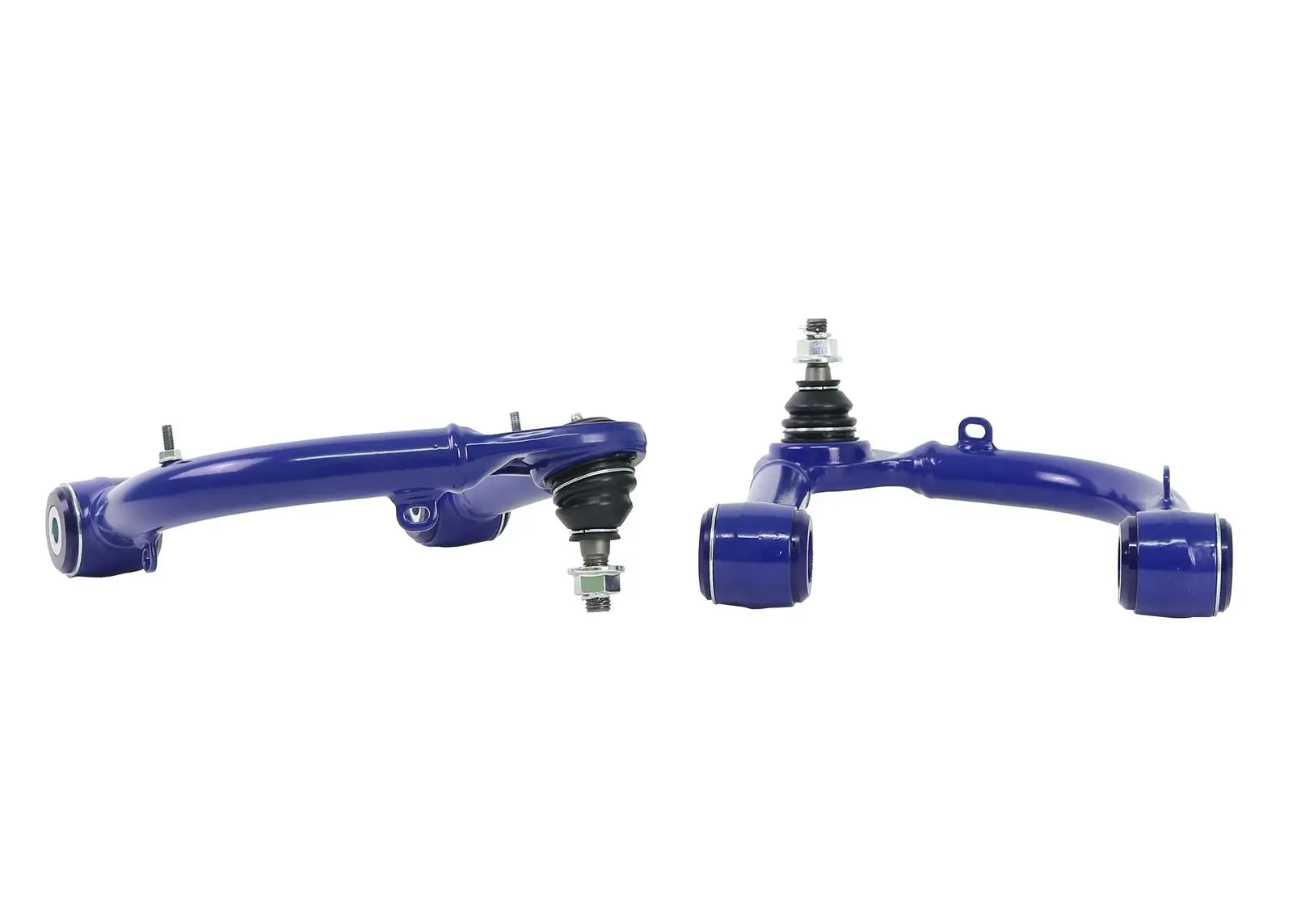

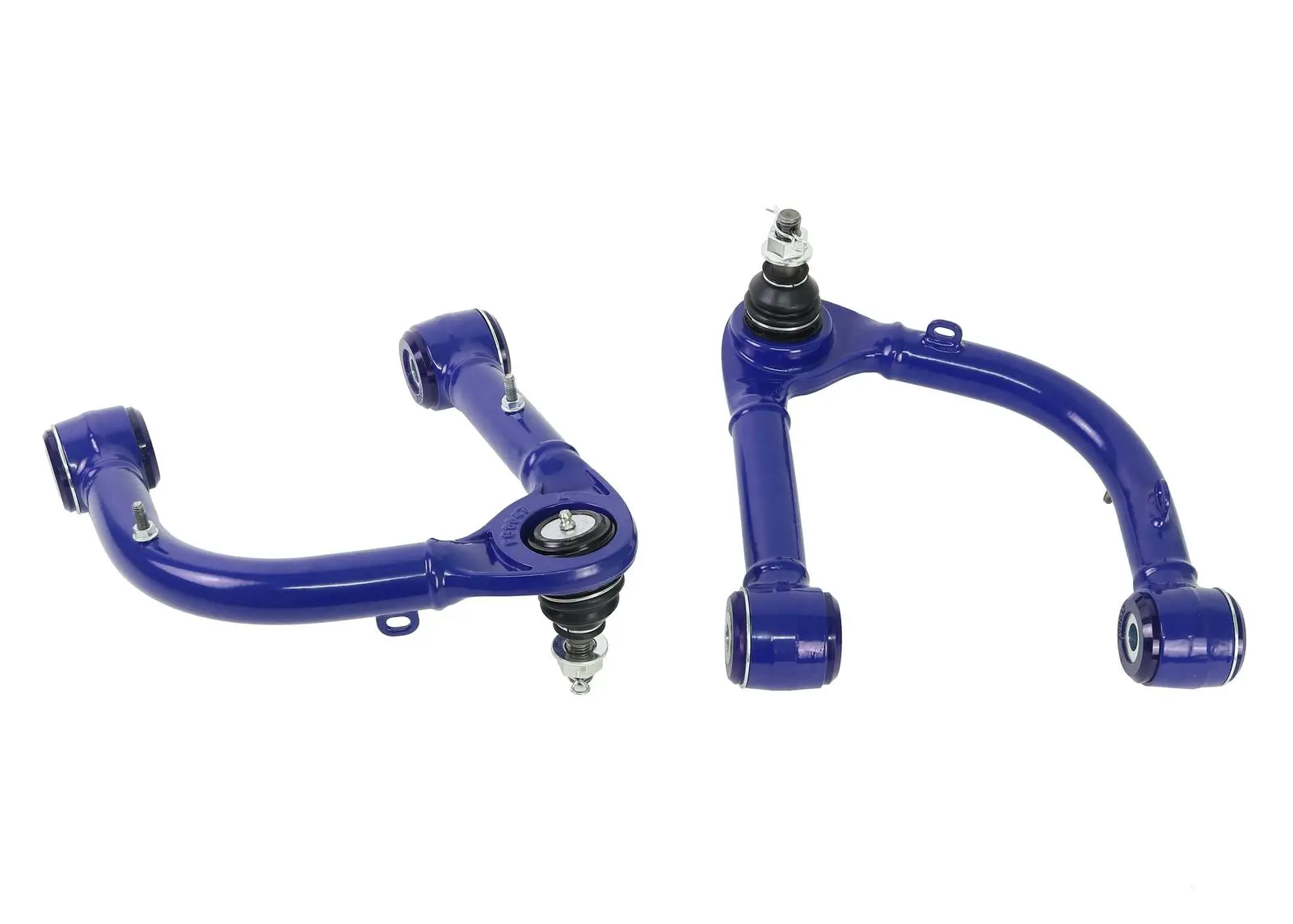

Getting the correct alignment on your lifted Ranger / BT-50 is no longer a problem. The SuperPro Fixed Offset Upper Control Arm is an all-in-one solution for any vehicle that has been lifted between 40mm and 65mm (2.5”). Providing an increase between 2.5 and 3.5 degrees of caster and up to 1.5 degrees of negative camber increase (figures quoted are based off a 50mm Lift) along with greater clearance to the coil over strut and more articulation of the arm. These arms fitted with heavy-duty ball joints and upgraded SuperPro bushes to reduce arm movement. Key Features

  • Fixed offset alignment correction arms
  • In-built camber and caster change to suit lifted vehicle
  • Increased clearance between spring and Control Arm at full articulation
  • Heavy Duty ball joint
  • SuperPro Bushings
SuperPro offers a lifetime warranty on all Polyurethane products and a 3 year or 36,000 mile warranty on all metal products, end links and ball joints. This warranty covers the cost of replacing the parts in the case of manufacturing defects, material defects and is subject to a Fair Use assessment.

KIT Includes

  • 2 x Arms
  • 2 x Ball Joints
  • 4 x Polyurethane Bushes
  • 4 x Steel Tubes

Technical Notes

  • Fixed offset alignment correction arms - includes ball joint
